What Actually Is an ECU and Why Does It Matter for Chip Tuning?

Your car’s ECU is basically a small computer that runs your engine. That’s it. Everything else — all the power increases, fuel mapping, sensor reading — flows from that one fact.

Understanding what an ECU actually does makes it way easier to understand how chip tuning works and why it’s even possible. So let’s break down what’s happening under your hood.

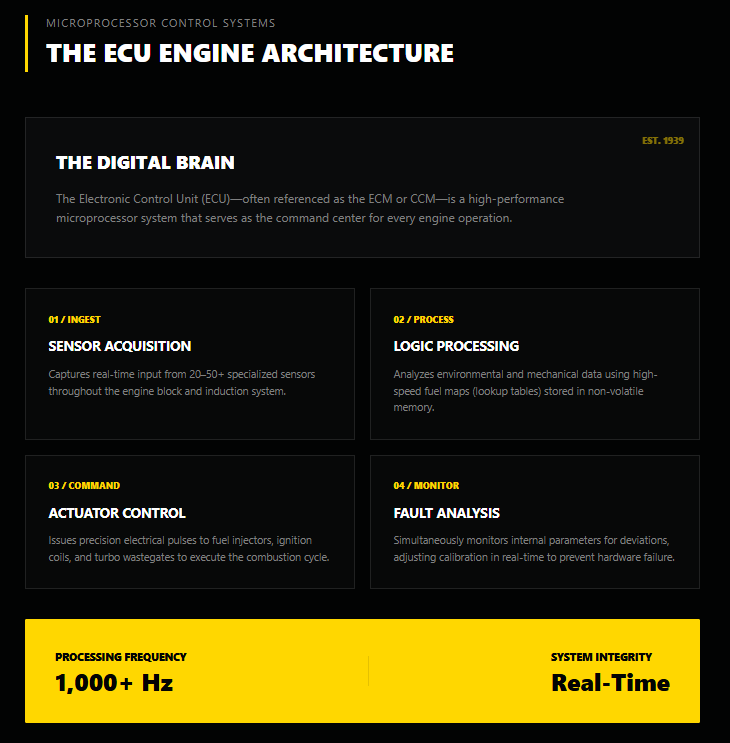

The ECU is your engine’s computer (literally)

ECU stands for Electronic Control Unit. Some people call it ECM (Electronic Control Module) or CCM (Central Control Module). Same thing — a microprocessor-based computer that manages engine operation.

The first ECU showed up in 1939 when engineers installed a basic electronic control system. Modern ECUs are obviously way more sophisticated, but the core concept hasn’t changed: read sensor data, make calculations, control engine components.

What your ECU does every second:

• Reads inputs from 20–50+ sensors throughout the engine
• Processes that data using fuel maps (lookup tables) stored in memory
• Sends commands to actuators (fuel injectors, ignition coils, turbo wastegate, etc.)
• Monitors everything for faults and adjusts in real-time

All of this happens thousands of times per second while you’re driving. Your throttle input is just one variable the ECU considers when deciding how much fuel to inject and when to fire the spark plugs.

How the ECU actually controls your engine

Think of the ECU as constantly answering one question: given current conditions, what should the engine do right now?

Current conditions include: throttle position, engine speed (RPM), intake air temperature, coolant temperature, boost pressure (turbocharged vehicles), oxygen sensor readings, knock sensor readings, vehicle speed, gear position, and about 30 other variables depending on your car.

The ECU takes all those inputs, looks them up in its fuel maps — which are basically massive tables saying “at X RPM and Y throttle position with Z air temperature, inject this much fuel” — and outputs commands to make it happen.

Example of ECU decision-making:

You’re cruising at 2000 RPM on the freeway, coolant at 190°F, and you push the throttle 30% open. The ECU reads: throttle position sensor (30%), MAF sensor (15 g/s of air flowing), coolant temp (190°F), RPM (2000). It looks up the fuel map for those conditions and calculates: inject 8.5 milliseconds of fuel per cylinder, fire spark plugs 12 degrees before top dead center. Engine produces smooth acceleration.

Now you floor it merging onto I-10. Throttle sensor jumps to 100%, air flow spikes to 60 g/s, turbo boost climbs to 1.5 bar. ECU recalculates: inject 22 milliseconds of fuel, advance timing to 8 degrees, maximum power output.

This happens continuously as conditions change. The ECU is basically running a real-time simulation of optimal combustion thousands of times per second.

Why fuel maps matter for chip tuning

Fuel maps are where manufacturers build in all their safety margins and restrictions. These tables define how aggressive or conservative your engine runs.

A fuel map might say: “At 3000 RPM and full throttle, inject enough fuel for 1.2 bar boost pressure.” But your turbocharger could safely handle 1.6 bar. Manufacturers program conservative limits to protect against bad gas, extreme temperatures, and drivers who never do maintenance.

That’s the gap chip tuning exploits. The hardware can handle more than the software allows.

ECU Parameter	Factory setting	Hardware capability	Tuning unlocks
Max boost pressure	1.4 bar	2.0 bar	1.7–1.8 bar
Fuel injection duration	18 ms	25 ms	22–23 ms
Ignition timing advance	10° BTDC	15° BTDC	12–13° BTDC
Torque limiter	350 Nm	480 Nm	450 Nm

These numbers come from GAN Tuning’s testing on 30,000+ vehicles. The pattern holds across manufacturers — conservative factory programming leaves significant performance headroom.

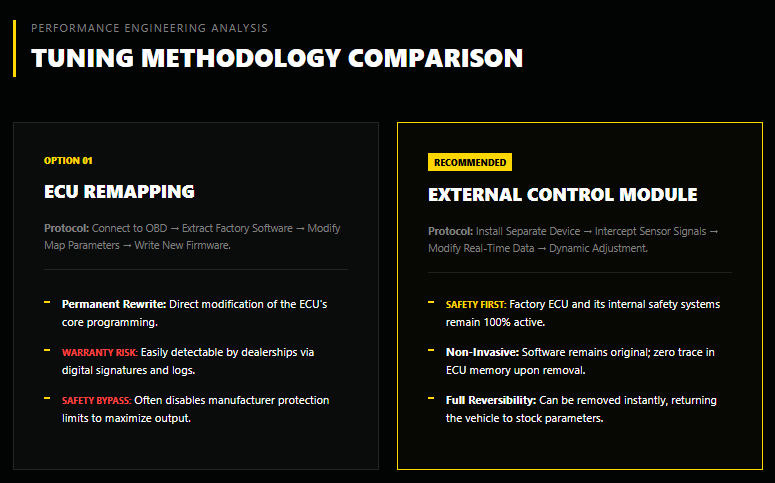

Two ways to change ECU behavior

There are two approaches to making the ECU run your engine differently: modify the ECU itself, or modify the signals going into the ECU.

Option 1: ECU remapping (OBD tuning)

Connect to the ECU via the diagnostic port, pull the factory software, modify the fuel maps and parameters, write the new software back. Now the ECU is running different programming.

This works, but it’s permanent (until you reflash again), voids warranties because dealerships can detect the changes, and often disables safety systems because tuners remove the limits manufacturers programmed in.

Option 2: External control module (chip tuning)

Install a separate device between your sensors and ECU. This module reads sensor signals, modifies them, and sends altered data to the ECU. The ECU thinks it’s seeing different conditions and adjusts accordingly.

Your factory ECU and its safety systems stay completely intact. The module is fully removable with zero trace.

Question: Why don’t manufacturers just program ECUs for maximum power from the factory?

Answer: Global market requirements. One engine has to work with low-grade gas in developing markets and premium fuel in the US. It has to survive drivers who never change their oil and drivers who maintain their vehicles perfectly. Manufacturers program for worst-case scenarios, which means conservative limits for everyone. That leaves 20–35% performance headroom in the hardware.

Question: Can the ECU tell if I’ve installed an external tuning module?

Answer: No. External modules modify sensor inputs before they reach the ECU. From the ECU’s perspective, it’s just receiving sensor data and responding normally. There’s no trace in ECU memory, no software version change, nothing for dealerships to detect when you remove it.

Why external modules are safer than ECU reprogramming

When you reprogram the ECU, you’re typically disabling or modifying the safety limits manufacturers spent millions developing. Common changes in ECU remapping: disabling torque limiters, removing boost pressure safeties, increasing maximum injection duration beyond safe levels, advancing ignition timing into knock territory.

These changes extract maximum power but remove the safety net. If something goes wrong — bad gas, carbon buildup, a failing sensor — the ECU won’t protect the engine because you disabled the protection systems.

External modules like GAN Tuning’s work differently. They request more power by modifying sensor signals, but the factory ECU’s safety systems stay active. If knock sensors detect detonation, the factory ECU still pulls timing. If oil pressure drops, the factory ECU still limits power. All the manufacturer’s protection algorithms keep running.

Engineers with over 20 years of calibration experience designed GAN Tuning modules specifically to work within factory safety limits while unlocking the performance headroom in the hardware. That’s why GAN can offer a €5,000 engine guarantee for 2 years — the modules don’t ask for anything the engine can’t safely deliver.

What happens when you install a GAN Tuning module

The module connects via your OBD-II port or directly to specific sensors depending on your engine type. Installation takes about 15 minutes — no shop, no special tools, dead simple.

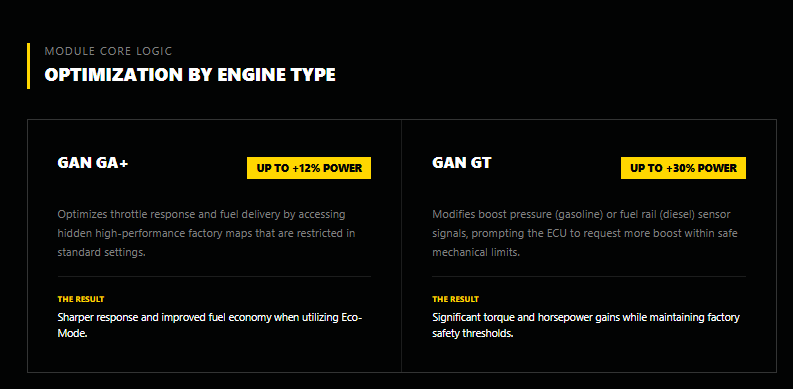

For naturally aspirated engines (GAN GA+): The module optimizes throttle response and fuel delivery by accessing the ECU’s high-performance maps (which exist in factory programming but are restricted). You get up to 12% more power with improved fuel economy in eco-mode.

For turbocharged engines (GAN GT): The module modifies boost pressure sensor signals (gasoline) or fuel rail pressure sensors (diesel). The ECU thinks pressure is lower than actual, so it requests more boost to compensate. You get up to 30% more power while staying within turbocharger mechanical limits.

Your factory ECU keeps managing everything — coolant temperature, oil pressure, knock detection, emissions controls. Nothing gets disabled. You just get access to performance the manufacturer deliberately restricted.

The module is completely reversible. Under the Magnusson-Moss Warranty Act, a manufacturer can’t void your warranty simply because you added an aftermarket part — they’d have to prove it directly caused a failure. And with GAN Tuning, that’s a non-issue anyway: unplug the module before a dealership visit via the smartphone app in under 60 seconds, plug it back in after. Zero trace in ECU memory, zero ECU flash counter increment. Your factory ECU and its programming never changed.

The bottom line on ECUs and chip tuning

Your ECU is programmed conservatively to protect against worst-case scenarios most drivers never encounter — whether you’re hauling a camper across I-40 or just grinding through your daily commute in Houston traffic. The hardware — turbocharger, fuel injectors, engine internals — can handle significantly more than the software allows.

Chip tuning works because it unlocks that headroom without removing the safety systems. External modules are safer than ECU remapping because they keep all factory protections active while requesting more performance.

Understanding what the ECU does makes it obvious why chip tuning is possible — and why a plug-and-play external module from GAN Tuning makes a whole lot more sense than permanent reprogramming for most drivers.
